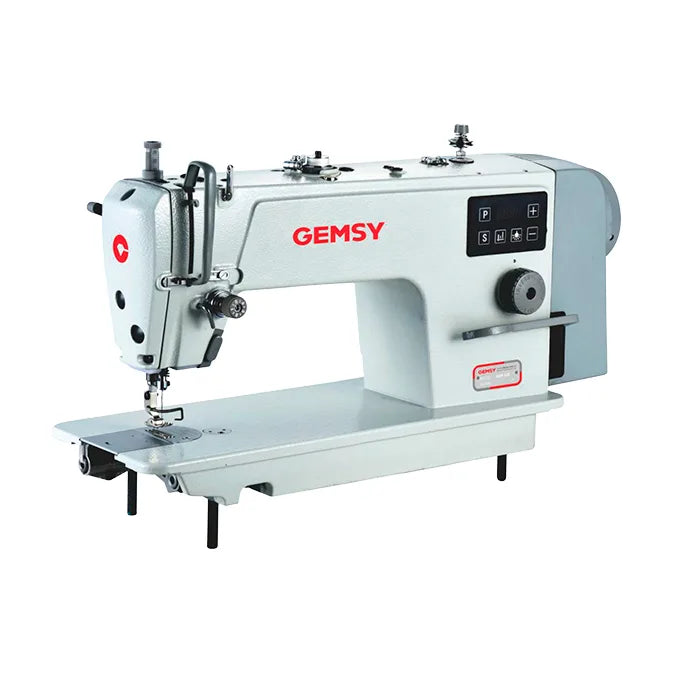

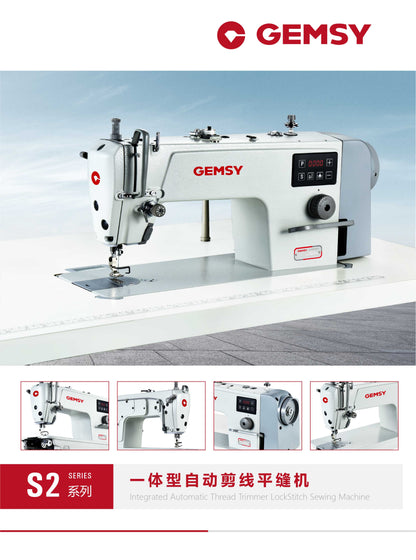

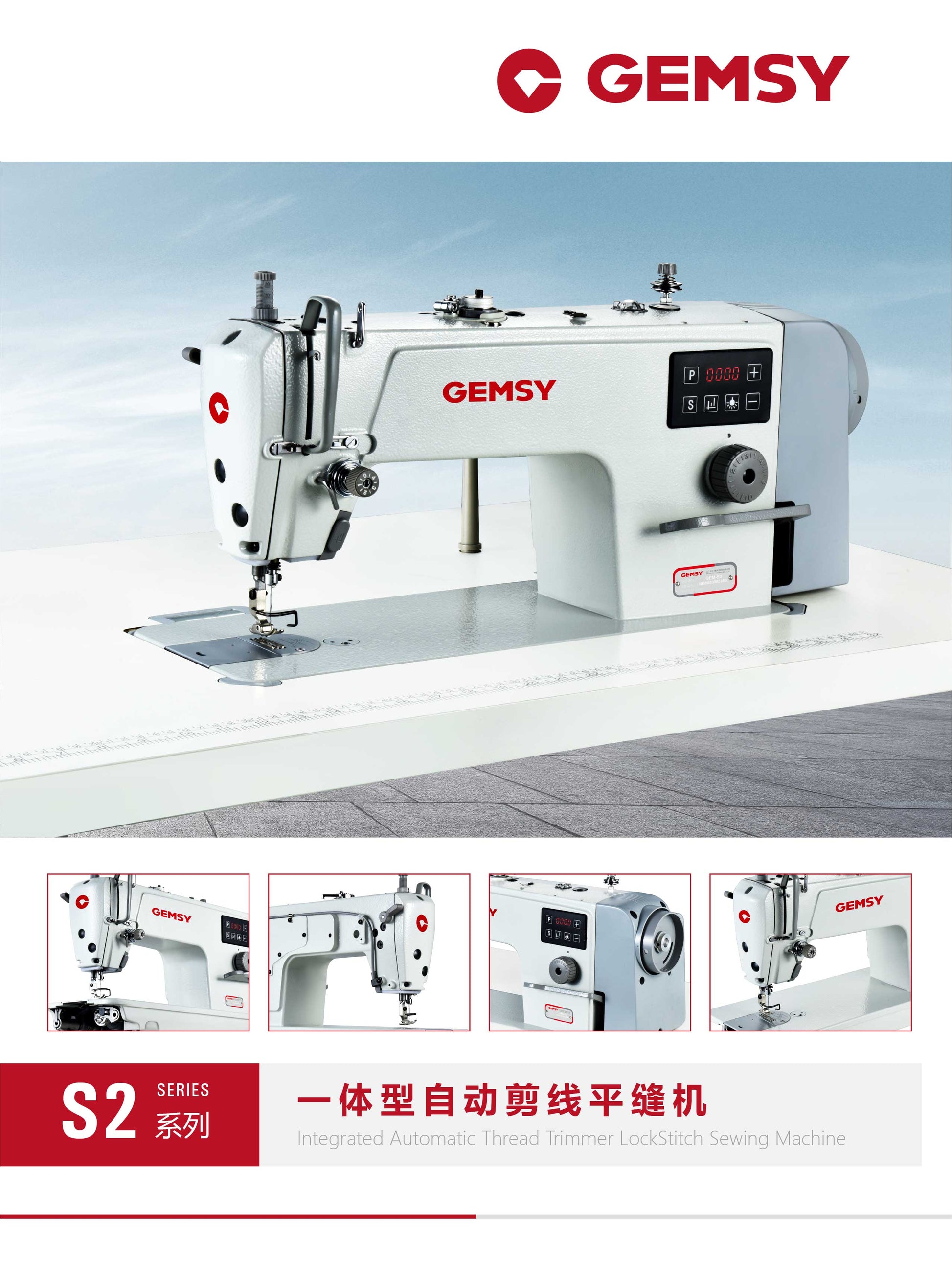

SG Gemsy S2 High-Speed Direct Drive Lockstitch Sewing Machine

Upgrade your sewing operation with the SG Gemsy S2-E1 High-Speed Lockstitch Machine, engineered for durability, precision, and professional performance. Perfect for tailoring shops, garment manufacturers, and workshops that demand consistent results and high productivity.

Key Features

Direct-Drive Motor
Integrated direct-drive motor delivers smooth, quiet, and energy-efficient operation. No external belt means less vibration and improved safety.

Energy Efficient
Consumes less power while ensuring stable output. Built to handle long hours of continuous work with reduced operational costs.

High Sewing Speed
Capable of up to 5000 stitches per minute (SPM) for faster production without compromising stitch quality.

Adjustable Stitch Length
Easily adjustable up to 5mm, offering versatility for different fabrics and stitch requirements.

Needle Compatibility
Supports DB×1 needles (sizes 11–18), making it suitable for a variety of sewing applications.

Automatic Lubrication
Fully automatic lubrication system ensures smooth machine performance and longer life.

Ergonomic Design

• Adjustable presser foot height (5–13mm) for thicker materials.

• Stable table and stand included for ready-to-use setup.

• Compact build with a balance of speed and control.


Complete Setup

Comes as a full kit: machine + table + stand + bobbin holder. Ready for immediate use in your workshop or studio after installation.

In The Box
Sales Package : 2(Machine & Table Stand)

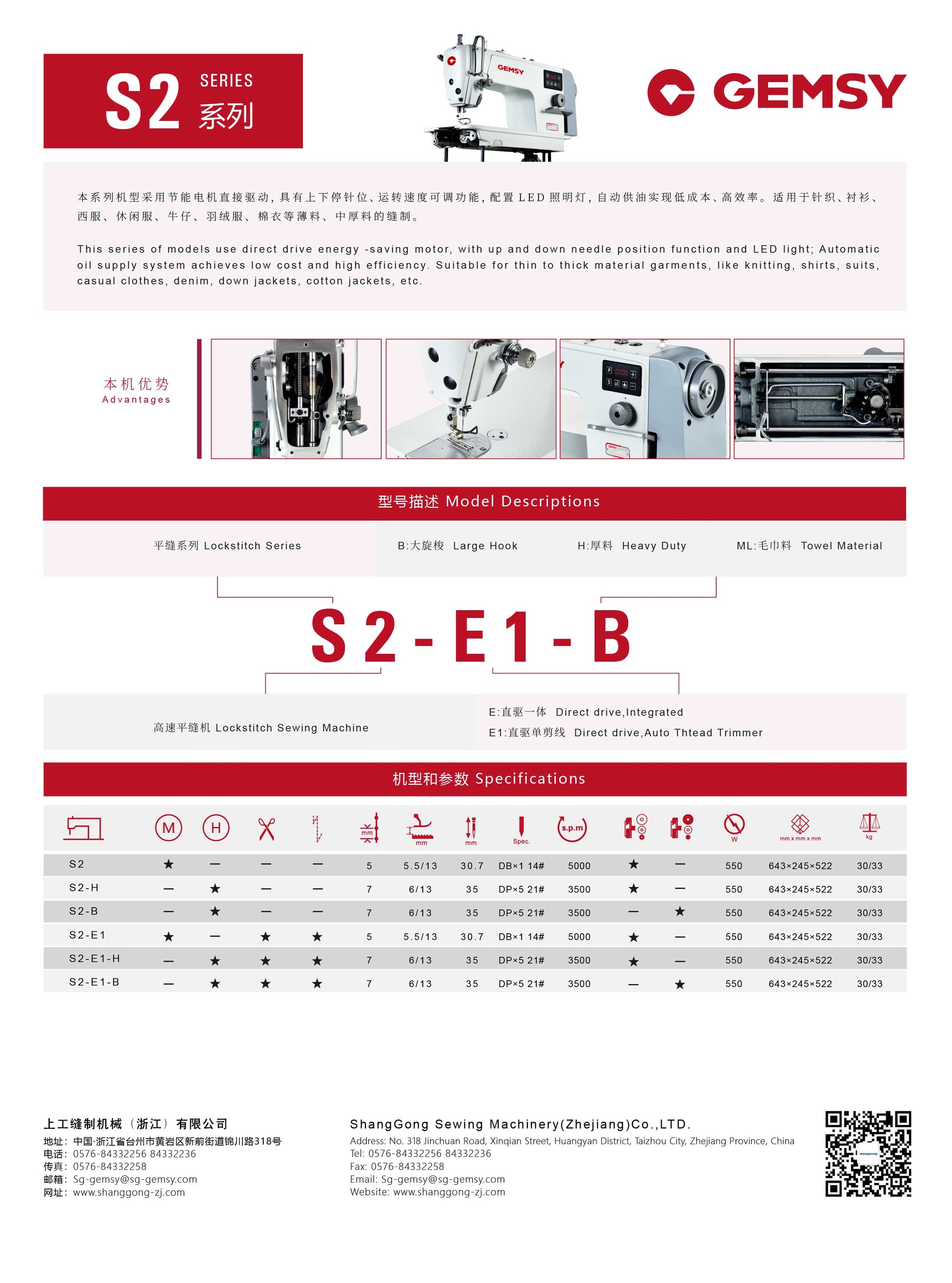

Technical Details

Mode – S2

Needle – DB×1 (Needle Size = 11 – 18)

Thread Number – 2

Stitch Length (mm) – 5

Height of pressu2re foot – 5-13

Sewing Speed – 5000 SPM (stitch per minute)

Fabrics – Light & Medium weight fabric

Volume (mm) – 635 x 245 x 550

Weight (kg)  – 31.5 Kgs/38.2 Kgs

Power Consumption – 100-295V

Lubrication – Fully Automatic Lubrication
